Lab1: Xv6 and Unix utilities

Boot xv6

按照官网给的lab tools page配置一下环境 Debian or Ubuntu

sudo apt-get install git build-essential gdb-multiarch qemu-system-misc gcc-riscv64-linux-gnu binutils-riscv64-linux-gnu

检验安装是否成功

$ qemu-system-riscv64 --version
QEMU emulator version 8.2.2 (Debian 1:8.2.2+ds-0ubuntu1.7)
Copyright (c) 2003-2023 Fabrice Bellard and the QEMU Project developers

$ riscv64-linux-gnu-gcc --version
riscv64-linux-gnu-gcc (Ubuntu 13.3.0-6ubuntu2~24.04) 13.3.0
Copyright (C) 2023 Free Software Foundation, Inc.
This is free software; see the source for copying conditions.  There is NO
warranty; not even for MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.

将项目下载下来

git clone git://g.csail.mit.edu/xv6-labs-2024

$ cd xv6-labs-2024
$ make qemu
... # 编译工具和选项
qemu-system-riscv64 -machine virt -bios none -kernel kernel/kernel -m 128M -smp 3 -nographic -global virtio-mmio.force-legacy=false -drive file=fs.img,if=none,format=raw,id=x0 -device virtio-blk-device,drive=x0,bus=virtio-mmio-bus.0

xv6 kernel is booting

hart 2 starting
hart 1 starting
init: starting sh

$ ls
.              1 1 1024
..             1 1 1024
README         2 2 2403
xargstest.sh   2 3 93
cat            2 4 34280
echo           2 5 33208
forktest       2 6 16200
grep           2 7 37544
init           2 8 33672
kill           2 9 33120
ln             2 10 32944
ls             2 11 36312
mkdir          2 12 33184
rm             2 13 33168
sh             2 14 54744
stressfs       2 15 34064
usertests      2 16 179368
grind          2 17 49416
wc             2 18 35240
zombie         2 19 32544
console        3 20 0

vscode 添加clangd LSP

项目根目录运行

$ bear -- make

自动记录 make 的所有编译参数，生成 compile_commands.json，clangd 会自动识别

sleep

参考user/中的其他一些程序(例如 user/echo.c 、 user/grep.c 和 user/rm.c)了解命令行参数如何传递给程序。

命令行参数从main(int argc, char *argv[]) 传入

argc：Argument Count，参数个数（包含程序名本身）。

argv：Argument Vector，参数字符串数组，每个元素是一个 char*

注意：如果用户忘记传递参数，sleep 应该打印一条错误消息。

命令行参数以字符串形式传递；可以使用atoi将其转换为整数(在user/ulib.c实现)。

使用系统调用 sleep，查看xv6文档，找到sleep以及需要使用的write：

System callDescription
int sleep(int n)Pause for n clock ticks.
int write(int fd, char *buf, int n)Write n bytes from buf to file descriptor fd; returns n.

根据以上内容就可以完成代码

//sleep.c
#include "kernel/types.h"
#include "kernel/stat.h"
#include "user/user.h"

int main(int argc, char* argv[])
{
    if (argc != 2) {
        write(1, "Usage: sleep <ticks>\n", 22);
        exit(1);
    }

    for (char* p = argv[1]; *p; p++) {
        if (*p < '0' || *p > '9') {
            fprintf(2, "sleep: invalid time interval '%s'\n",argv[1]);
            exit(1);
        }
    }

    sleep(atoi(argv[1]));
    exit(0);
}

之后在Makefile里找到第180行添加

180 UPROGS=\
181     $U/_cat\
182     $U/_echo\
183     $U/_forktest\
184     $U/_grep\
185     $U/_init\
186     $U/_kill\
187     $U/_ln\
188     $U/_ls\
189     $U/_mkdir\
190     $U/_rm\
191     $U/_sh\
192     $U/_sleep\
193     $U/_stressfs\
194     $U/_usertests\
195     $U/_grind\
196     $U/_wc\
197     $U/_zombie\

编译测试

$ ./grade-lab-util sleep
make: 'kernel/kernel' is up to date.
== Test sleep, no arguments == sleep, no arguments: OK (1.1s)
== Test sleep, returns == sleep, returns: OK (0.7s)
== Test sleep, makes syscall == sleep, makes syscall: OK (1.0s)

pingpong

主要使用的系统调用

System callDescription
int fork()Create a process, return child’s PID.
int wait(int *status)Wait for a child to exit; exit status in *status; returns child PID.
int getpid()Return the current process’s PID.
int write(int fd, char *buf, int n)Write n bytes from buf to file descriptor fd; returns n.
int read(int fd, char *buf, int n)Read n bytes into buf; returns number read; or 0 if end of file.
int close(int fd)Release open file fd.
int pipe(int p[])Create a pipe, put read/write file descriptors in p[0] and p[1].
// pingpong.c
#include "kernel/types.h"
#include "kernel/stat.h"
#include "user/user.h"

int main(int argc, char* argv[])
{

    int p_to_c[2];
    int c_to_p[2];

    pipe(p_to_c);
    pipe(c_to_p);

    char buf[1];

    if (fork() == 0) {
        // Child process code
        close(p_to_c[1]);
        close(c_to_p[0]);

        read(p_to_c[0], buf, sizeof(buf));

        fprintf(1, "%d: received ping\n", getpid());
        write(c_to_p[1], buf, sizeof(buf));

        close(p_to_c[0]);
        close(c_to_p[1]);
    }
    else {
        // Parent process code
        close(p_to_c[0]);
        close(c_to_p[1]);

        write(p_to_c[1], "a", sizeof(buf));

        read(c_to_p[0], buf, sizeof(buf));
        fprintf(1, "%d: received pong\n", getpid());

        close(p_to_c[1]);
        close(c_to_p[0]);

        wait(0);//等待子进程结束
    }
    exit(0);
}

Makefile添加:

180 UPROGS=\
...
190     $U/_pingpong\

编译测试

$ ./grade-lab-util pingpong
make: 'kernel/kernel' is up to date.
== Test pingpong == pingpong: OK (2.7s)

primes

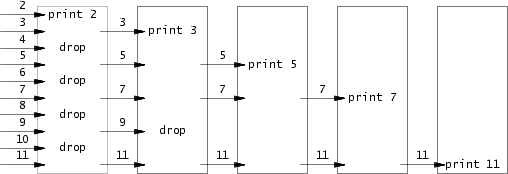

用pipe和fork实现一个素数筛 sieve

核心思想是：每个进程负责一个素数，只传递不能被该素数整除的数字给下一个进程。

prime函数打印当前素数，fork新的进程，子进程递归调用，父进程将不能被当前数整除的用pipe给子进程

System callDescription
int pipe(int p[])Create a pipe, put read/write file descriptors in p[0] and p[1].
int read(int fd, char *buf, int n)Read n bytes into buf; returns number read; or 0 if end of file.
int close(int fd)Release open file fd.
int fork()Create a process, return child’s PID.
#include "kernel/types.h"
#include "kernel/stat.h"
#include "user/user.h"

void primes(int) __attribute__((noreturn));

void primes(int fd)
{
    int p, n;   //必须局部变量（非static），保证每个递归层有自己独立的管道fd数组。
    int p_to_c[2];      //static 变量导致管道fd共享，关闭异常，造成进程阻塞和未退出。改为局部变量即可正常退出。
    pipe(p_to_c);

    if (read(fd, &p, 4) == 0) {
        close(fd);
        exit(0);
    }

    fprintf(1, "prime %d\n", p);

    if (fork() == 0) {
        close(p_to_c[1]);
        close(fd);
        primes(p_to_c[0]);
    } else {
        close(p_to_c[0]);
        while (read(fd, &n, 4) != 0) {
            if (n % p != 0) {
                write(p_to_c[1], &n, 4);
            }
        }
        close(p_to_c[1]);
        close(fd);
        wait(0);
    }
    exit(0);
}

int main(int argc, char* argv[])
{
    int p_to_c[2];
    pipe(p_to_c);
    if (fork() == 0) {
        close(p_to_c[1]);
        primes(p_to_c[0]);
    } else {
        close(p_to_c[0]);
        for (int i = 2; i <= 280; i++) {
            write(p_to_c[1], &i, 4);
        }
        close(p_to_c[1]);
        wait(0);
    }
    exit(0);
}

180 UPROGS=\
...
191     $U/_primes\

编译测试

$ ./grade-lab-util primes
make: 'kernel/kernel' is up to date.
== Test primes == primes: OK (1.5s)

find

查找目录树中所有指定名称的文件 主要借鉴代码user/ls.c

System callDescription
int open(char *file, int flags)Open a file; flags indicate read/write; returns an fd (file descriptor).
int fstat(int fd, struct stat *st)Place info about an open file into *st.
int read(int fd, char *buf, int n)Read n bytes into buf; returns number read; or 0 if end of file.
// find.c
#include "kernel/types.h"
#include "kernel/stat.h"
#include "user/user.h"
#include "kernel/fs.h"      //目录项(directory entry)结构体
#include "kernel/fcntl.h"   //使用open()是权限限制

void find(char* path, char* target)
{
    char buf[512], *p;  //buf存储目录path,*p操作字符串
    int fd;             //存储文件描述符
    struct dirent de;   //目录项
    struct stat st;     //文件状态

    if ((fd = open(path, O_RDONLY)) < 0) {      //只读打开path，通过path映射一个fd
        fprintf(2, "find: cannot open %s\n", path);
        return;
    }

    if (fstat(fd, &st) < 0) {   //st写入path文件状态
        fprintf(2, "find: cannot stat %s\n", path);
        close(fd);
        return;
    }

    while (read(fd, &de, sizeof(de)) == sizeof(de)) {   //通过fd逐项读取目录内部的目录项
        if (strlen(path) + 1 + DIRSIZ + 1 > sizeof buf) {
            // 在构建新的完整路径之前，检查 buf 缓冲区是否足够大。
            // strlen(path): 当前路径的长度。
            // + 1: 为路径分隔符 / 留出空间。
            // + DIRSIZ : 为目录项名称 de.name 留出最大空间。
            // + 1 : 为字符串结束符 \0 留出空间。
            printf("find: path too long\n");
            break;
        }

        if (de.inum == 0)
            continue;

        strcpy(buf, path);
        p = buf + strlen(buf);
        *p++ = '/';
        memmove(p, de.name, DIRSIZ);

        // 将当前目录项的名称de.name复制到buf中，紧跟在/之后。
        // 使用memmove而不是strcpy是因为de.name可能不是以\0结尾的(它是一个固定大小的数组 char name[DIRSIZ])。
        p[DIRSIZ] = 0;

        if (stat(buf, &st) < 0) {
            printf("find: cannot stat %s\n", buf);
            continue;
        }

        if (strcmp(de.name, ".") == 0 || strcmp(de.name, "..") == 0)
            continue;
        // 不递归自身和上一级目录

        if (st.type == T_DIR) {
            //下一级是文件夹就递归
            find(buf, target);
        }
        else if (strcmp(de.name, target) == 0) {
            fprintf(1, "%s\n",buf);
        }
    }
}

int main(int argc, char* argv[])
{
    if (argc != 3) {
        fprintf(2, "Usage: find <path> <filename>\n");
        exit(1);
    }

    find(argv[1], argv[2]);
    exit(0);
}

xargs

xargs工作方式:

  1. 读取标准输入
  2. 把从标准输入读到的内容，作为额外的参数添加到xargs后面指定的命令的末尾。
  3. 然后，它会执行这个由原始命令和新增参数组成的完整命令。
#include "kernel/types.h"
#include "kernel/stat.h"
#include "user/user.h"

#define MAX_BUF 512

int main(int argc, char* argv[])
{
    char* new_argv[3];  //合并后参数
    char line_buf[MAX_BUF];
    int current_len = 0;

    for (int i = 1; i < argc ; i++) {
        new_argv[i - 1] = argv[i];
    }
    int initial_arg_count = argc - 1;

    while (read(0, line_buf + current_len, 1) > 0) {
        if (line_buf[current_len] == '\n') {    //遇到换行符直接执行
            line_buf[current_len] = '\0';
            new_argv[initial_arg_count] = line_buf;
            new_argv[initial_arg_count + 1] = 0;

            if (fork() == 0) {
                exec(new_argv[0], new_argv);    //执行原始命令
                fprintf(2, "xargs: exec failed\n");
                exit(1);
            } else {
                wait(0);
                current_len = 0;
            }
        } else if (current_len < MAX_BUF - 1) {
            current_len++;
        } else {
            fprintf(2, "xargs: line too long, truncated\n");
        }
    }

    if (current_len > 0) {
        line_buf[current_len] = '\0';
        new_argv[initial_arg_count] = line_buf;
        new_argv[initial_arg_count + 1] = 0;

        if (fork() == 0) {
            exec(new_argv[0], new_argv);
            fprintf(2, "xargs: exec failed\n");
            exit(1);
        } else {
            wait(0);
        }
    }

    exit(0);
}

lab1 grade

$ make grade
== Test sleep, no arguments ==
$ make qemu-gdb
sleep, no arguments: OK (2.4s)
== Test sleep, returns ==
$ make qemu-gdb
sleep, returns: OK (0.6s)
== Test sleep, makes syscall ==
$ make qemu-gdb
sleep, makes syscall: OK (1.0s)
== Test pingpong ==
$ make qemu-gdb
pingpong: OK (0.9s)
== Test primes ==
$ make qemu-gdb
primes: OK (1.5s)
== Test find, in current directory ==
$ make qemu-gdb
find, in current directory: OK (0.8s)
== Test find, in sub-directory ==
$ make qemu-gdb
find, in sub-directory: OK (1.2s)
== Test find, recursive ==
$ make qemu-gdb
find, recursive: OK (0.8s)
== Test xargs ==
$ make qemu-gdb
xargs: OK (1.6s)
== Test xargs, multi-line echo ==
$ make qemu-gdb
xargs, multi-line echo: OK (0.5s)
== Test time ==
time: OK
Score: 110/110
